Side Label Applicator

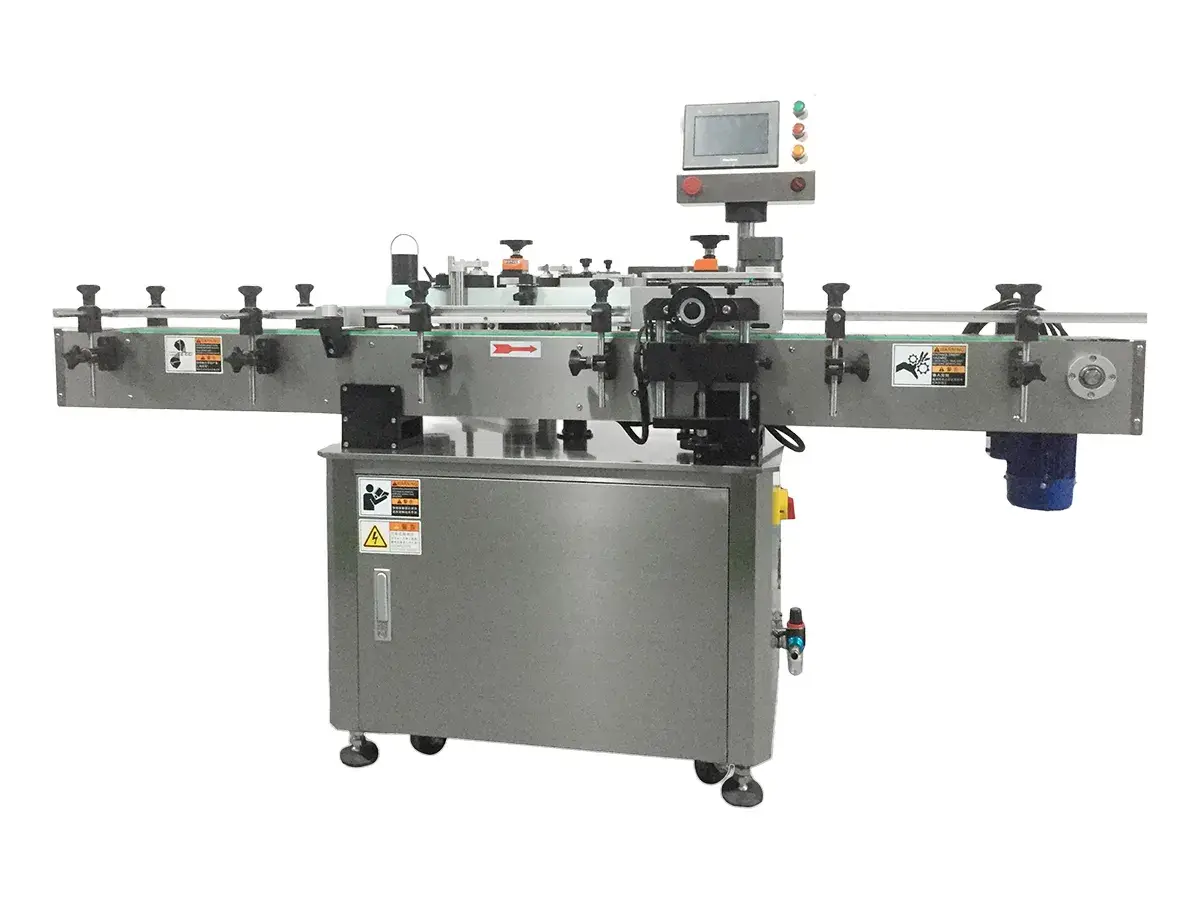

SRT-10 Side Label Applicator

Side label applicators place a single pressure-sensitive label (also known as self-adhesive labels) on the front or side of bottles, cartons and other containers. During the labeling process, the products move along the conveyor toward the label applicator, there a sensor detects each one and starts the labeling cycle. The label is peeled from its backing, placed on the selected surface and smoothed down with a roller. Depending on the product and label size, these labelers handle 40–150 units per minute, with placement accuracy within ±1.0 mm.

  • Labeling Speed: 40–150 pcs/min
  • Labeling Accuracy: ±1.0 mm
Request a Quote
Watch Videos
Applications

Side label applicators are widely used for bottles, containers and packages in the following industries:

  • Food and beverage
  • Personal care and household products
  • Pharmaceuticals and healthcare
  • Chemical and industrial products
Side Label Applicator
Technical Specifications
Labeling Speed 40–150 pcs/min (depending on product and label size)
Labeling Accuracy ±1.0 mm (excluding product and label size variations)
Label Size (L) 20–280 mm / (H) 30–140 mm
Product Size Diameter Ø40–Ø100 mm / Height 40–300 mm
Label Roll Inner Diameter Ø76 mm
Maximum Label Roll Diameter Ø350 mm
Machine Dimensions (L) 2000 × (W) 850 × (H) 1450 mm
Power Supply AC 220 V, 50/60 Hz, 1500 W
Process Flow
  • Product Feeding
  • Product Detection
  • Label Dispensing
  • Label Application
  • Label Pressing
Main Components
  • Label Roll Holder: For mounting the label roll and maintaining stable material tension during operation
  • Label Dispensing Unit: Separates each label from the backing paper before it reaches the application position
  • Labeling Head and Pressing Roller: Responsible for placing the label onto the product surface and smoothing it firmly into place
  • Conveyor and Positioning System: Guides products through the labeling area and keeps them aligned during application
  • Photoelectric Sensor: Detects product position to control the timing of each labeling action
  • PLC Control System: Provides parameter settings, operation control and fault monitoring
Machine Details

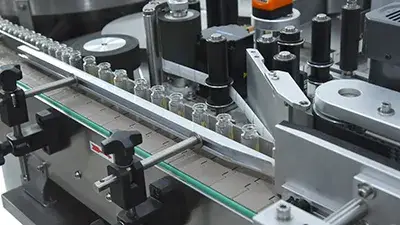

    • Labeling Unit
      Labeling Unit
    • Conveyor Table
      Conveyor Table
    • Bottle Feeding Turntable
      Bottle Feeding Turntable
