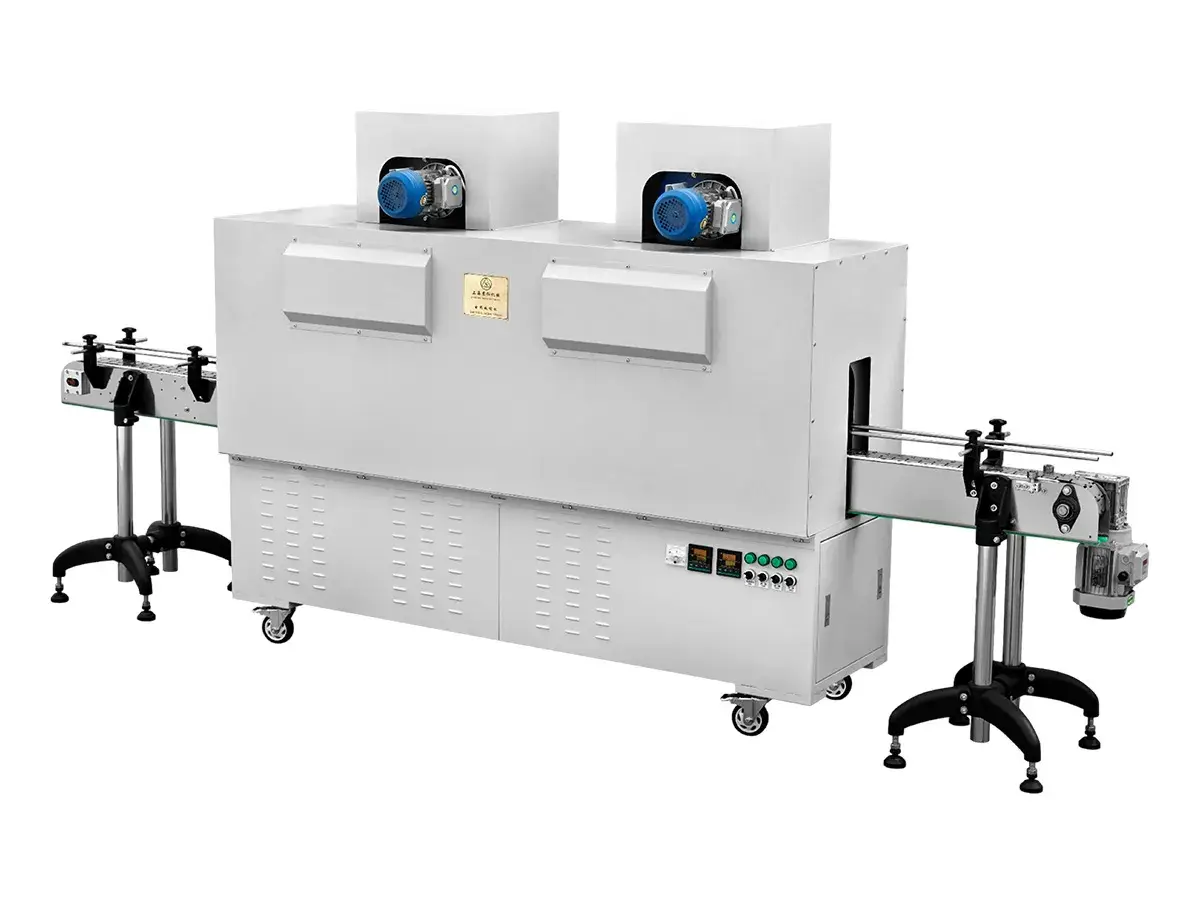

Electric Shrink Tunnel, Double Zone

Electric Heat Tunnel, Double Zone Shrink Tunnel

Double zone electric heat shrink tunnels are used to shrink sleeve films such as PVC, POF, PE, PP and OPS after they are applied to containers. They use two heating sections, one above and one below the conveyor, to heat the film from different directions during the shrinking process. The upper and lower heating sections distribute heat more evenly around the container, which is useful for products with different shapes and sizes.

Request a Quote
Watch Videos
Applications
  • Personal care and cosmetic products
  • Pharmaceutical and healthcare products
  • Food and beverage packaging
  • Tall bottles and irregular-shaped containers
  • Applications
Sleeve Shrinking Process
Sleeve Shrinking Process
Technical Specifications
Model Double Zone Thermostatic Electric Shrink Tunnel
Machine Dimensions (mm) 2000 × 600 × 1500
Construction Material Stainless Steel with Spray-Painted Finish
Net Weight 330 kg
Blower Power 18.4 kW
Features
  • Upper and lower heating sections provide more balanced heat distribution inside the tunnel.
  • 2–3 independent temperature zones with ±2–5℃ control accuracy adapt to different shrink film requirements.
  • Independent upper and lower airflow systems improve heat circulation and reduce sleeve wrinkles and air bubbles.
  • Insulated panels and stainless steel exterior reduce heat loss and improve operating safety.
  • Adjustable airflow direction supports precise shrinking for areas such as bottle necks and shoulders.
  • Adjustable tunnel height (available on selected models) allows easy integration with different production lines.
