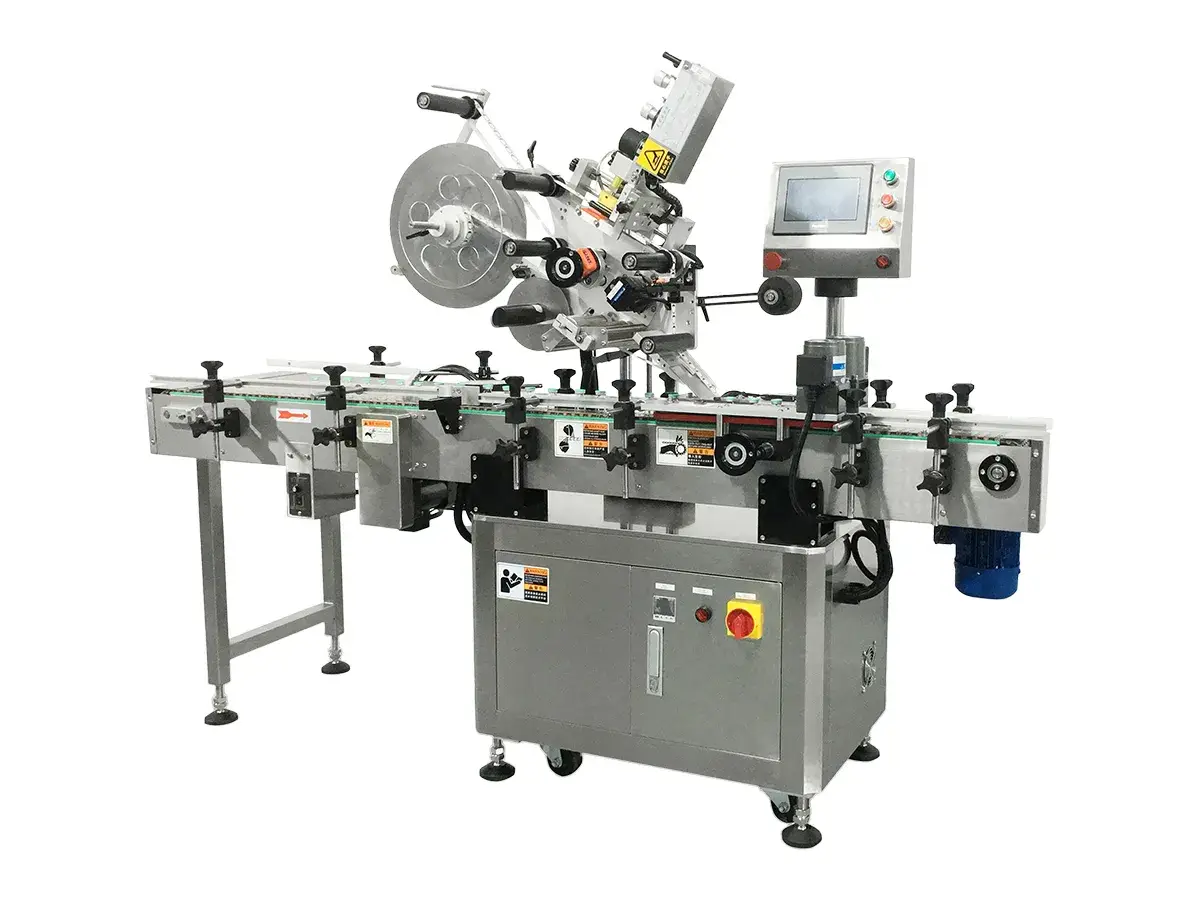

SRT-20 Flat Label Applicator
Flat surface label applicators apply self-adhesive labels, known also as pressure sensitive labels, to flat or slightly curved product surfaces, including cartons, boxes, batteries, books and electronic components. During operation, products that need label application move through the labeling area while the label roll is separated from the backing paper and applied onto the surface. Sensors detect the product position to keep each label accurately placed.
- Labeling Speed: 0–25 m/min (depending on product and label size)
- Labeling Accuracy: ±1.0 mm
Request a Quote
Watch Videos
Applications
- Food and beverage products
- Personal care and household products
- Pharmaceutical and healthcare products
- Specialty bottles and packaging
Technical Specifications
| Labeling Speed | 0–25 m/min (depending on product and label size) |
| Labeling Accuracy | ±1.0 mm |
| Label Size | (L) 20–300 mm / (H) 10–140 mm |
| Product Size | Diameter Ø30–Ø100 mm / Height 20–200 mm |
| Label Roll Inner Diameter | Ø76 mm |
| Maximum Label Roll Diameter | Ø350 mm |
| Machine Dimensions | (L) 2000 × (W) 900 × (H) 1500 mm |
| Power Supply | AC 220 V, 50/60 Hz, 1200 W |
Main Components
- Label Feeding Unit: Includes the roll holder, tension control rollers and peeling plate to keep label feeding stable during operation
- Conveyor System: Uses belt or roller conveyors to move products smoothly through the labeling area
- Label Application Unit: Available with roller, air-blow or stamping-type application methods for different product surfaces
- Detection and Control System: Photoelectric sensors detect product position, while PLC or servo control manages labeling timing and operation
- Touchscreen Interface: Allows parameter setting, fault alerts and storage of multiple product recipes for quick setup
Machine Details
-
Label Feeding Unit -

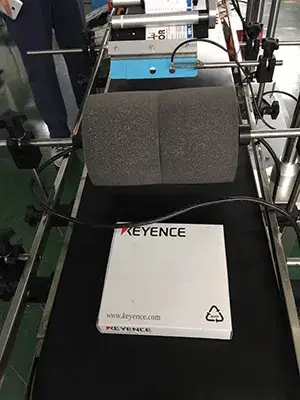

Conveyor System -

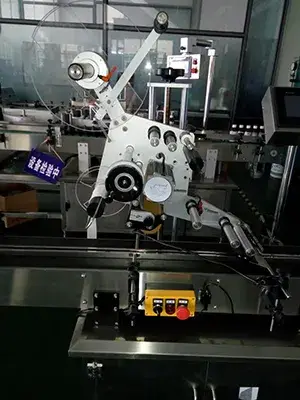

Label Roll Holder -

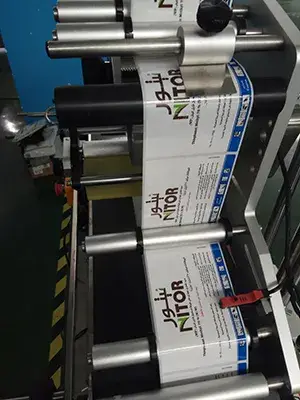

Labeling Unit
