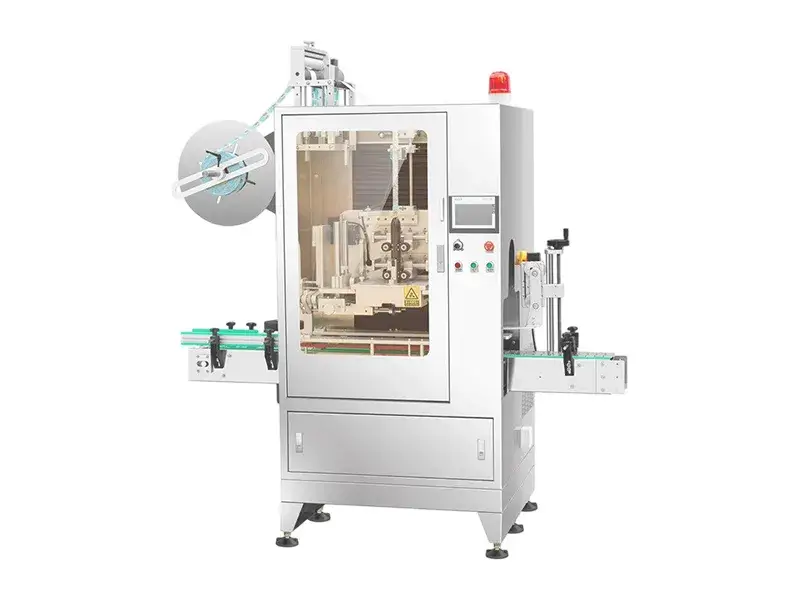

SRL-150 Shrink Sleeve Labeling Machine
Vertical shrink sleeve labeling machines apply heat shrink sleeves to round, square and irregular containers made from materials such as PET, PVC, glass, metal, HDPE, PP and PS. They support full-body sleeves, partial sleeves and tamper-evident bands for different packaging applications, with speeds of up to 9000 containers per hour. The sleeve film is fed from a roll, cut into individual sleeves and placed onto containers before the heat shrinking process fixes the label in position.
- Max. Speed: 9000 containers/h
- Container Diameter: 25–125 mm (Special sizes can be customized)
- Sleeve Applications: Full-body sleeves, partial sleeves and tamper-evident bands
- Compatible Container Materials: PET, PVC, glass, metal, HDPE, PP and PS
- Machine Construction: SUS304 stainless steel with corrosion resistance
Request a Quote
Watch Videos

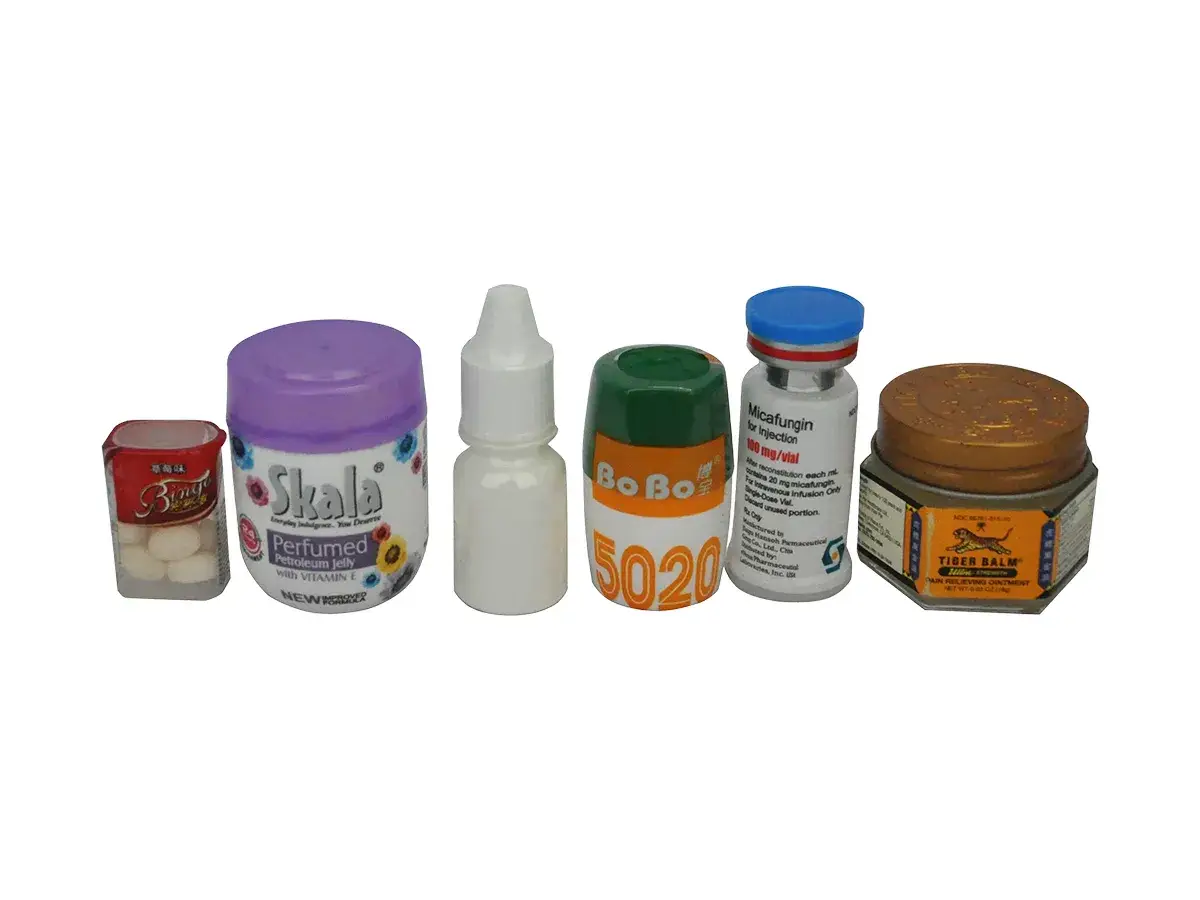

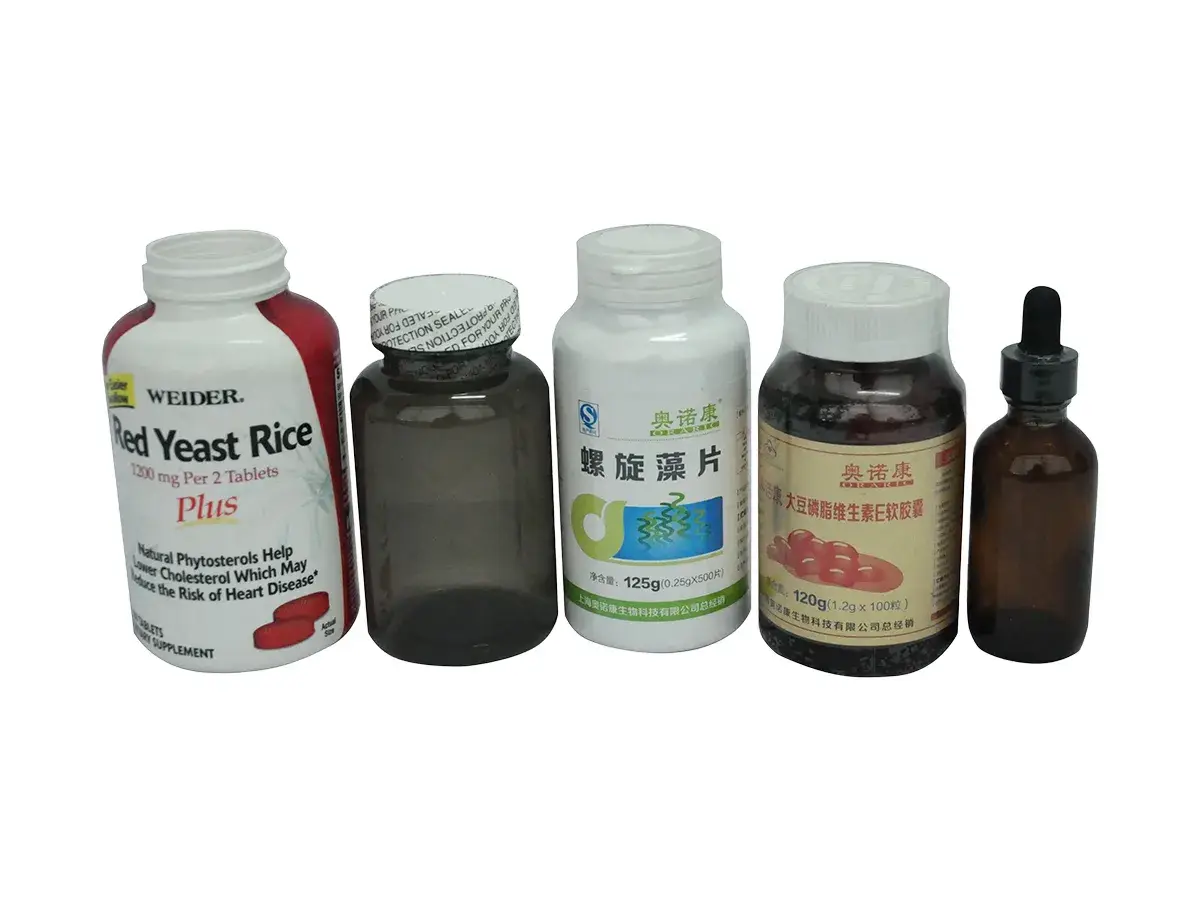

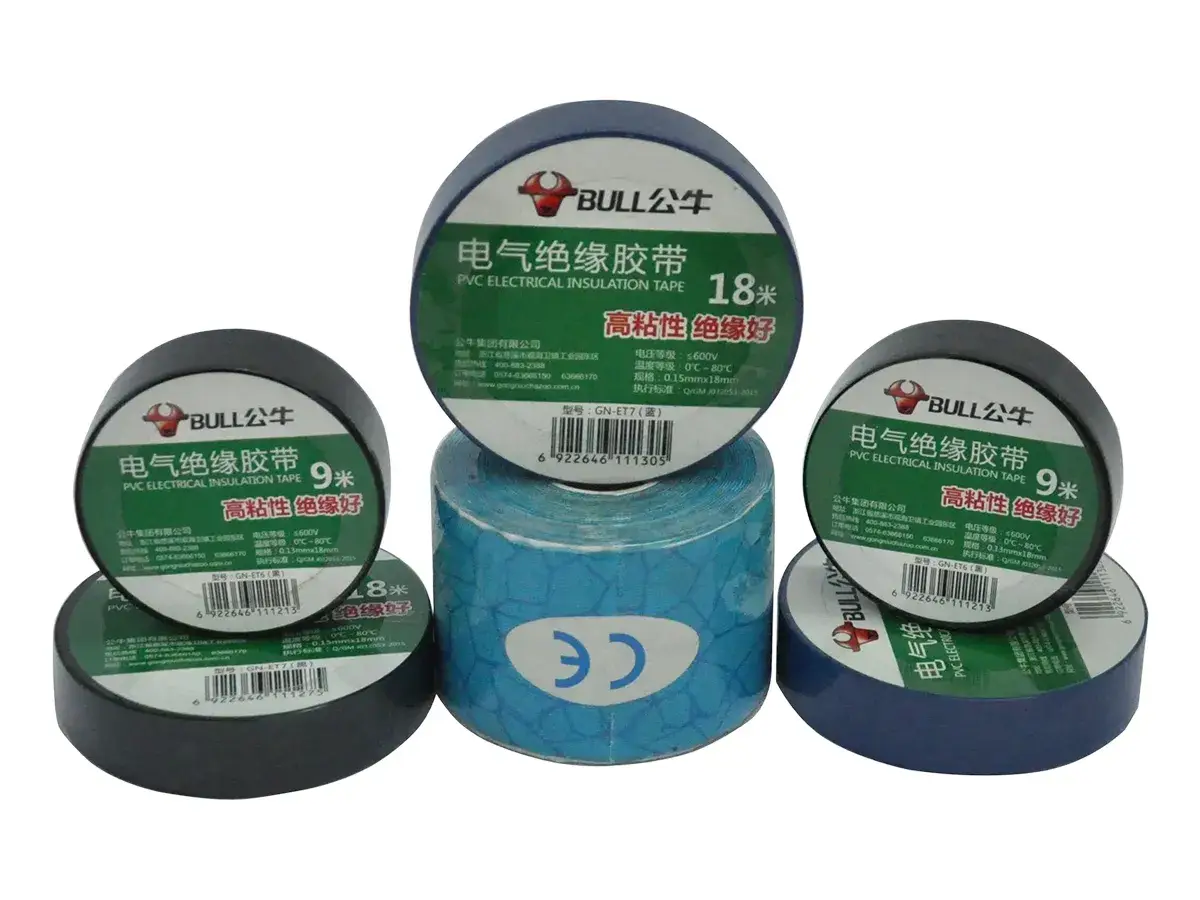

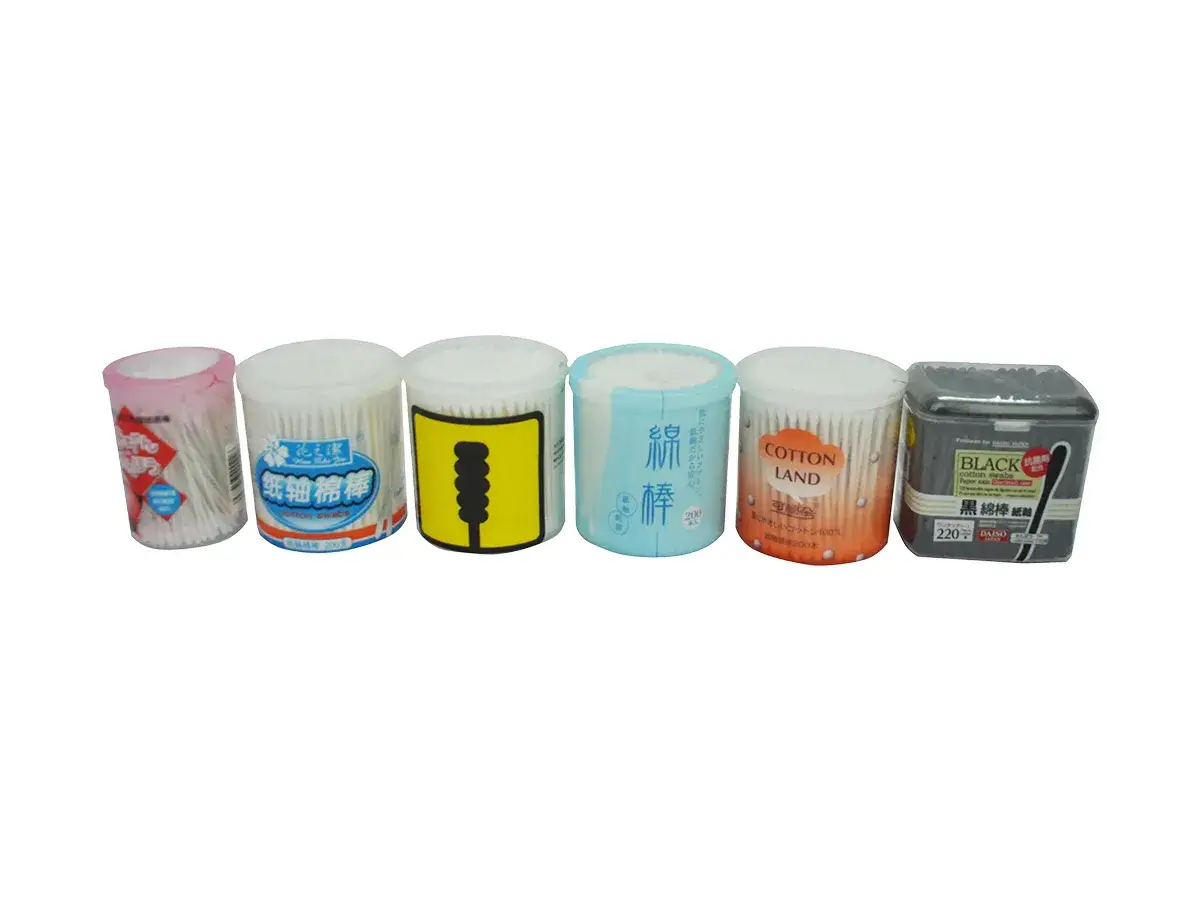

Applications
Shrink sleeve labeling machines are commonly used for:
- Food and beverage packaging
- Household products
- Personal care products
- Pharmaceutical packaging
- Other consumer products that need decorative or tamper-evident sleeves
Technical Specifications
| Max. Speed | 9000 containers/h |
| Container Diameter Range | Ø25–125 mm (Customizable) |
| Standard Container Height | Approx. 350 mm (Customizable) |
| Sleeve Application Types | Full-body sleeves, partial sleeves, shoulder sleeves and cap seals |
| Container Materials | PET, PVC, glass, metal, HDPE, PP, PS |
| Shrink Film Materials | PVC, PET and OPS |
| Film Thickness | 0.03–0.08 mm |
| Standard Sleeve Length | Approx. 25–280 mm (Longer lengths require confirmation) |
| Cutting Knife Range | Ø25–50 mm / Ø51–95 mm / Ø96–125 mm (Customizable) |
| Voltage | Customizable |
| Power Consumption | 3 kW |
| Compressed Air Requirement | None |
| Roll Core Diameter | 5"–10" |
| Frame Material | SUS304 stainless steel |
| Machine Dimensions | 970 mm (L) × 910 mm (W) × 2,000 mm (H) |
| Net Weight | Approx. 550 kg |
Features
- These shrink sleeve labelers are ideal for container diameters from 25–125 mm, and can be customized for special sizes.
- Their structure and protective parts are made from SUS304 stainless steel, with a 2.5 mm stainless-steel conveyor frame to ensure stable product transfer.
- They are equipped with a servo-driven sleeve brushing system that maintains stable sleeve positioning during application.
- The film feeding system uses a servo motor and synchronous belt drive to improve feeding accuracy, with a position display for checking clamping data.
- Dual film rollers and buffer mechanisms help keep film feeding smooth during continuous operation.
- Equipped with two photoelectric sensors to check sleeve application status and provide alarms when problems are detected.
- Different settings can be saved and recalled for faster changeovers between different containers.
Optional Configurations
- Container spacing can be configured with single-screw, dual-screw or screw-and-guide systems to match different container handling requirements.
- Two cutting systems are available: a traditional multi-blade design for a more economical option and a servo-controlled single-blade design for smoother cutting performance.
- The height adjustment system is available with either servo control or motor control to match different shrink sleeving requirements.
