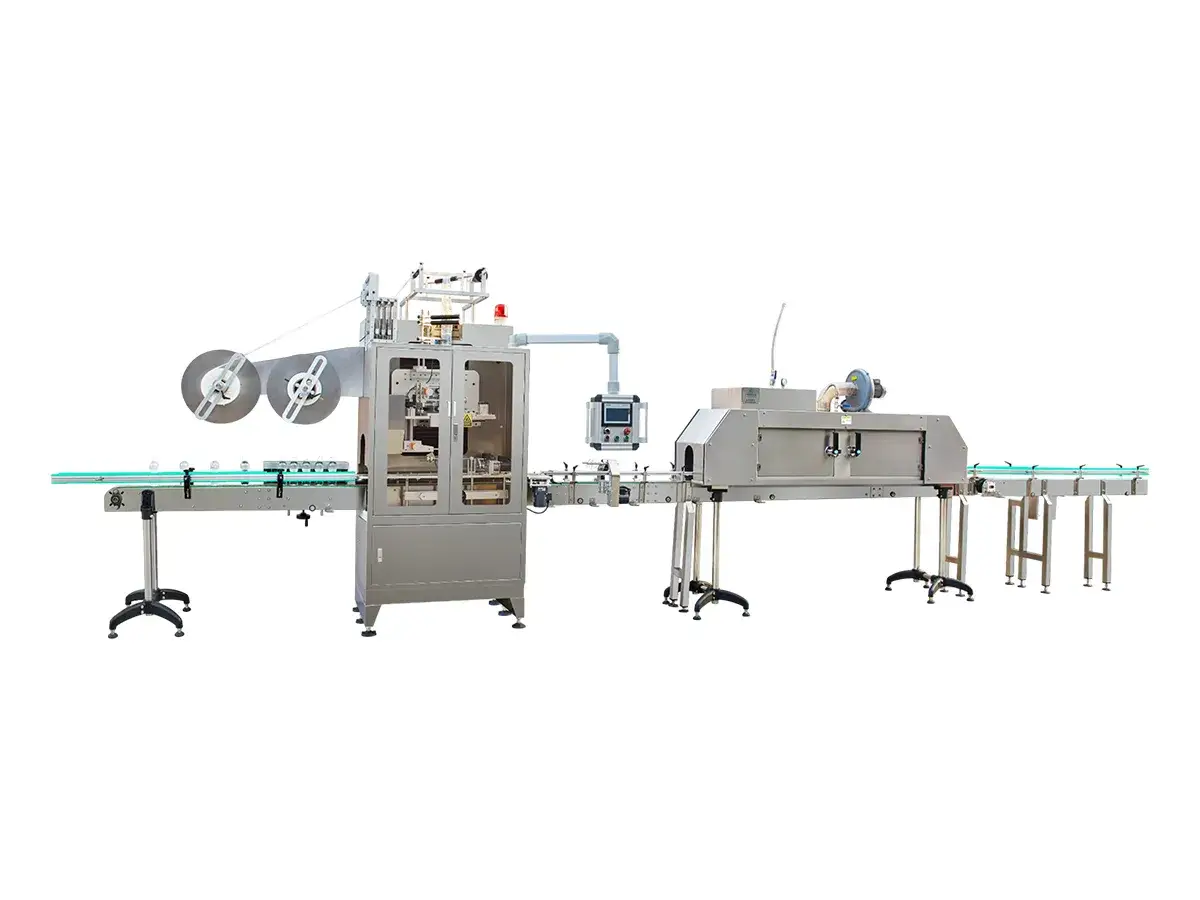

SRL-450 Shrink Sleeve Label Applicator

These shrink sleeve labeling machines automatically feed, cut and apply heat shrink sleeves to containers at speeds of up to 27000 containers per hour. They work with PVC, PET and OPS films for full-body sleeves, shoulder sleeves and cap seals. Their servo control keeps the shrink film feeding smooth and sleeve placement accurate during production, while the SUS304 stainless-steel frame resists rust and corrosion.

  • Max. Speed: 27000 containers/h
  • Container Diameter Range: Ø25–125 mm (Customizable)
  • Standard Sleeve Length: Approx. 25–280 mm (Longer lengths require confirmation)
  • Shrink Film Materials: PVC, PET and OPS
  • Roll Core Diameter: 5"–10"
Request a Quote
Watch Videos

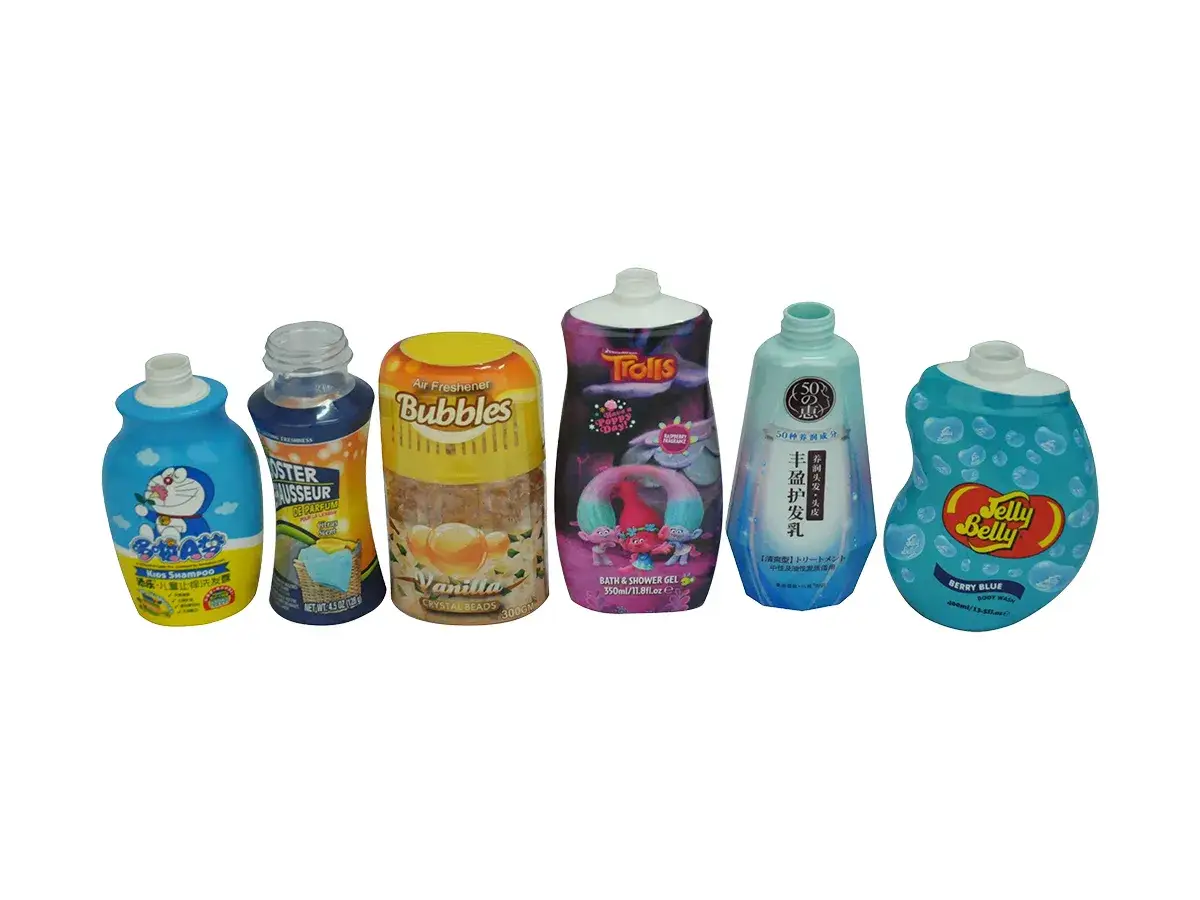

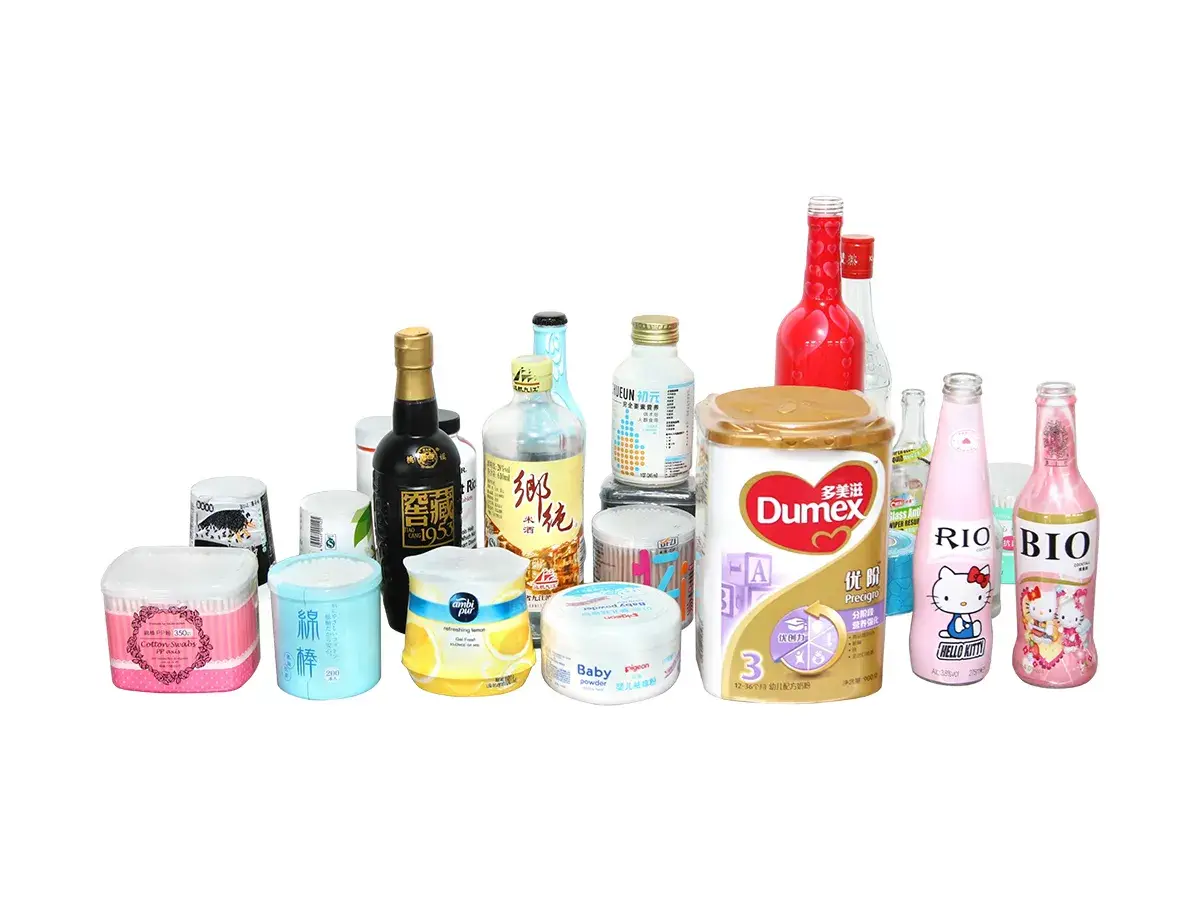

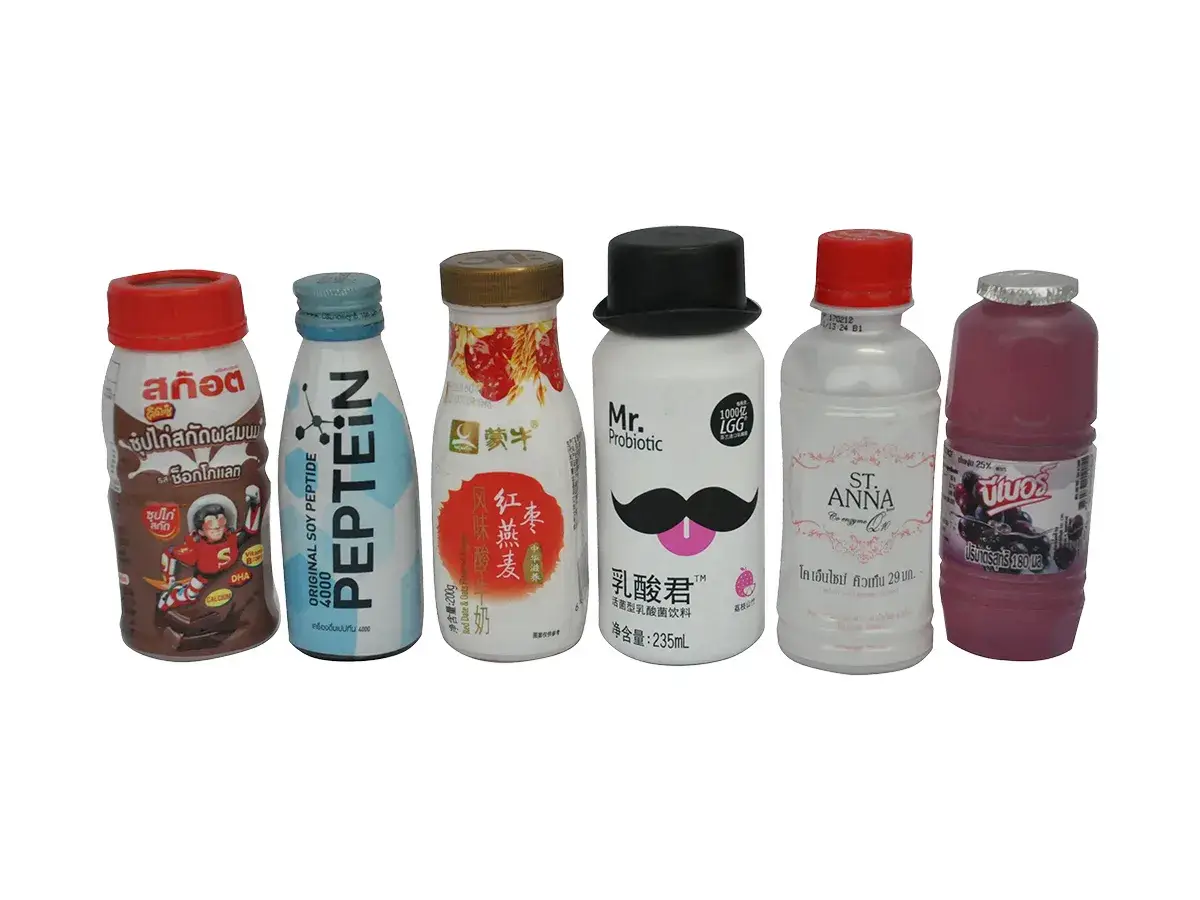

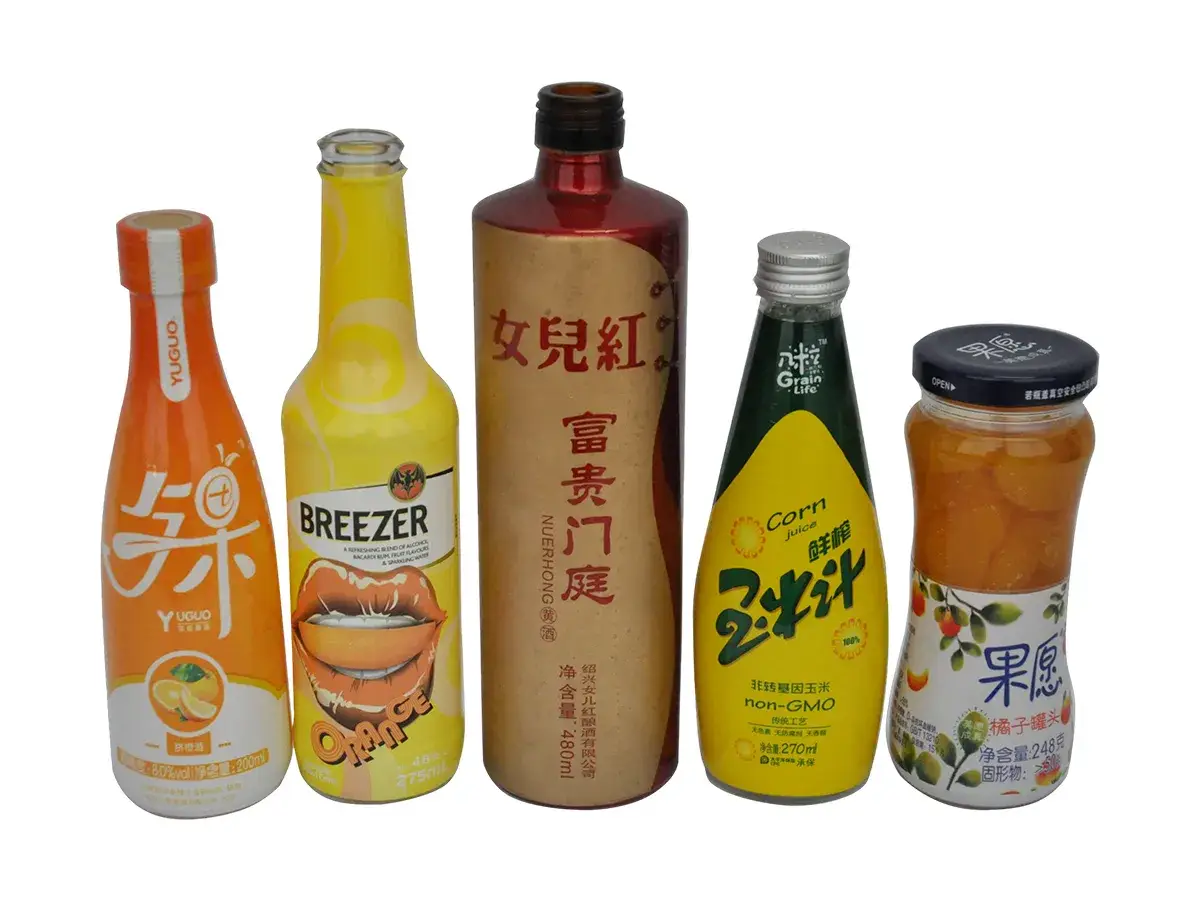

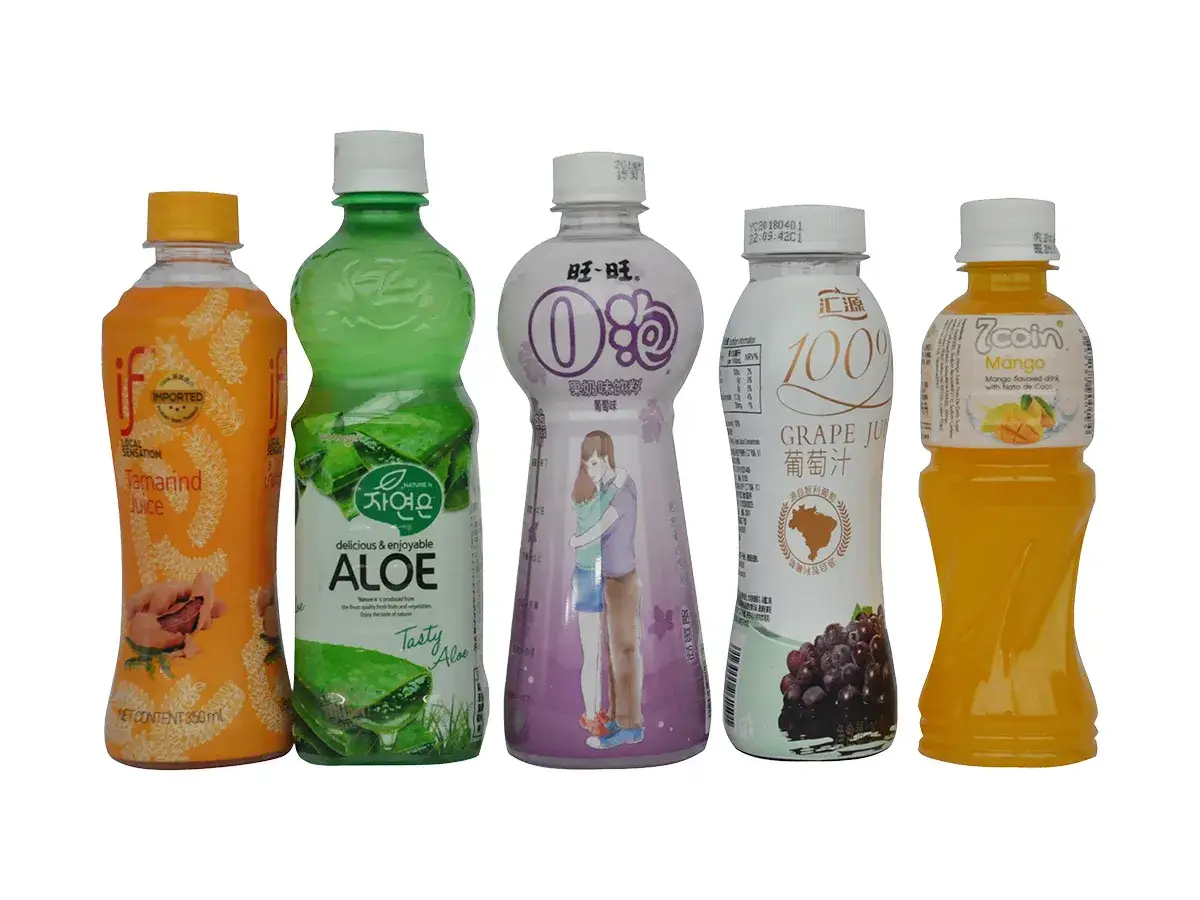

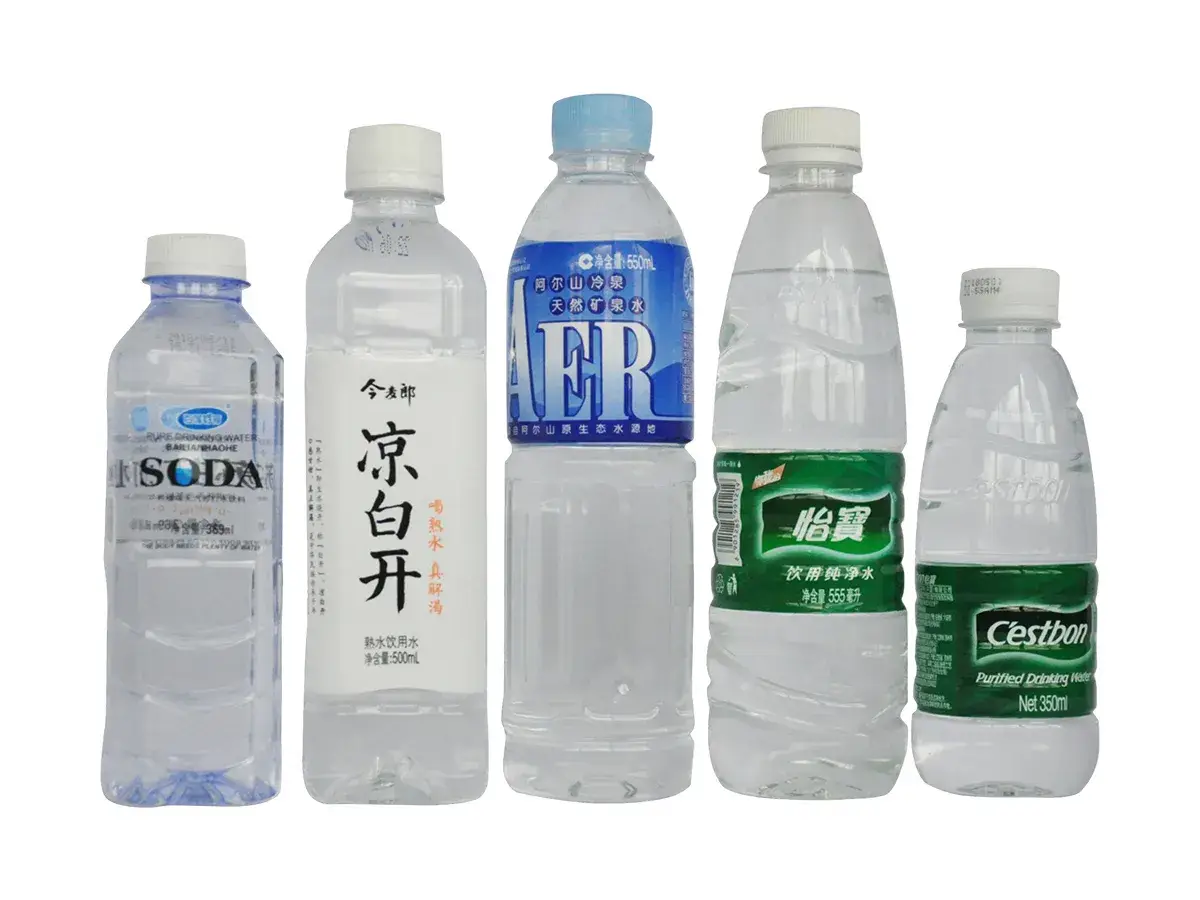

Applications
  • Food and Beverages: Glass and PET containers
  • Household Products: HDPE and PP containers
  • Pharmaceuticals: Medicine bottles and tamper-evident packaging
  • Wine and Spirits: Glass bottles
  • Shrink Sleeve Label Applicator
  • Shrink Sleeve Label Applicator
  • Shrink Sleeve Label Applicator
  • Shrink Sleeve Label Applicator
  • Shrink Sleeve Label Applicator
  • Shrink Sleeve Label Applicator
Technical Specifications
Max. Speed 27000 containers/h
Container Diameter Range Ø25–125 mm (Customizable)
Standard Container Height Approx. 350 mm (Customizable)
Standard Sleeve Length Approx. 25–280 mm (Longer lengths require confirmation)
Cutting Blade Range Ø25–50 mm / Ø51–95 mm / Ø96–125 mm (Customizable)
Sleeve Application Types Full-body, middle-body, overall, shoulder and cap-seal sleeves
Container Materials PET, PVC, glass, metal, HDPE, PP and PS
Shrink Film Materials PVC, PET and OPS
Film Thickness 0.040–0.080 mm
Roll Core Diameter 5"–10"
Voltage 3-phase, 380 V / 220 V (Customizable)
Power Consumption 4.5 kW
Compressed Air Requirement None
Machine Frame Material SUS304 stainless steel
Machine Dimensions 1070 mm (L) × 970 mm (W) × 2100mm（H）
Net Weight Approx. 700 kg
Features
  • The adjustable film holder accommodates 5-inch and 10-inch roll cores, making it easier to work with different film supply formats.
  • A positive-feed system guides the film steadily through the applicator using a simple and economical design.
  • The label applicator can run shrink film as thin as 0.040 mm, which reduces material use and labeling costs.
Optional Configurations
  • Container Spacing System
    1. Independent single-screw system
    2. Synchronized dual-screw system
    3. Single-screw system synchronized with the conveyor guides
  • Height Adjustment Control
    1. Servo motor control
    2. Standard motor control
  • Cutting System
    1. Conventional multi-blade system (economical option)
    2. Dual-servo single-blade system (for cleaner, more even cuts)

Note: Only one configuration can be selected from each category.
